YES, a Digital Display kit that ACTUALLY works with the LS1 and Factory Computer (PCM)!
Bought an iC-7 only to discover it doesn't actually work with the LS1? Don't worry, you're not alone and we have a solution for you.

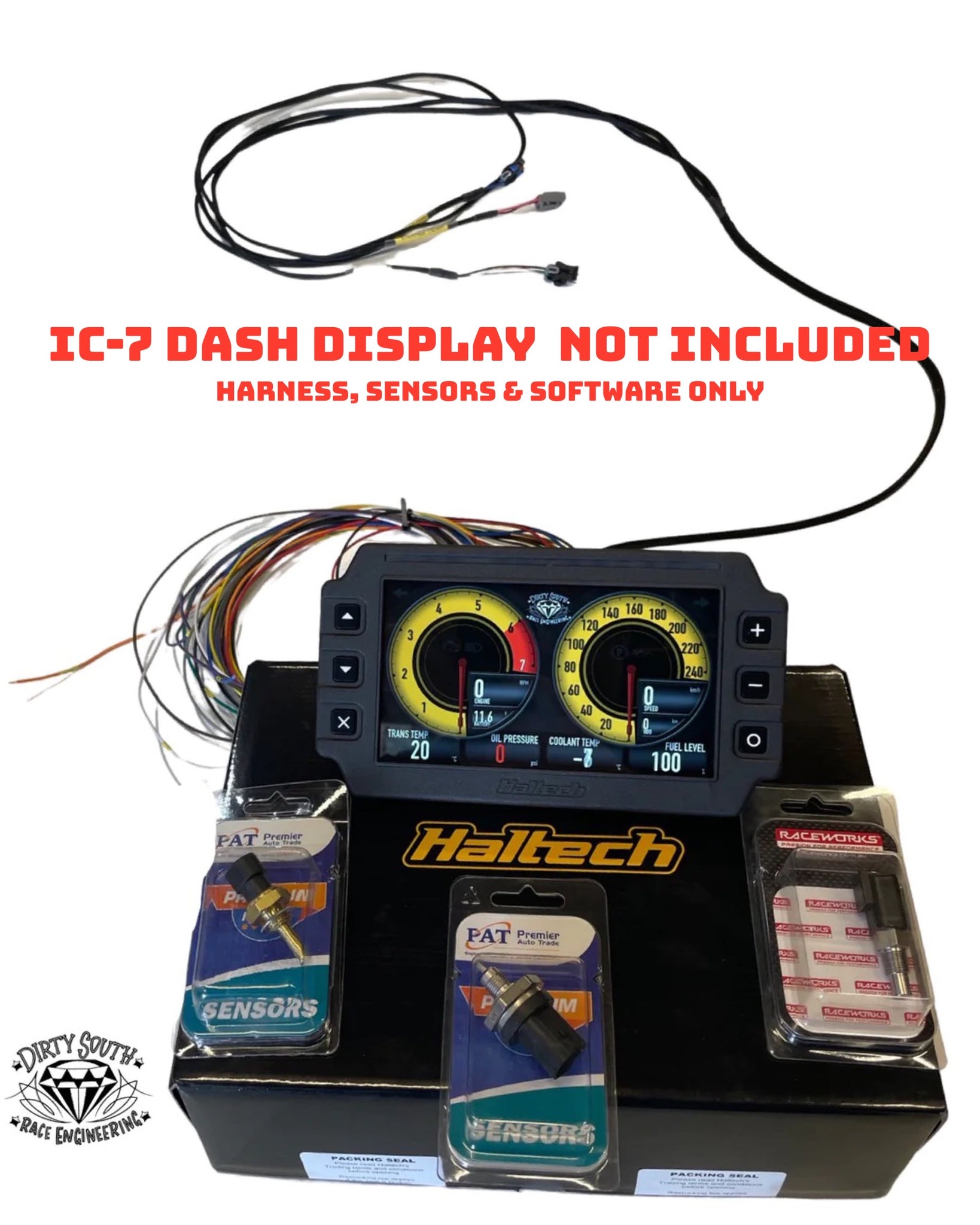

This kit includes everything you need to install a Haltech iC-7 Digital Display in your LS1 powered vehicle, EXCLUDING the Dash Itself.
This kit does NOT use the extremely slow, OBD2 serial data and therefore the dash displays ZERO lag. See the video at the end!
These dashes are legal and engineerable if installed correctly.
Features & Inclusions:
- Pre Programmed software, with Warnings, Shift Lights & Alarms Pre-Set
- Labelled & Terminated wiring harness, ready to connect up
- All Sensors, wiring and accessories included
- ZERO LAG - Kit uses outputs from PCM for seamless refresh rate
- Comprehensive, Plain English instructions
- High quality, Syltech, Raceworks and PAT Sensor
Display Includes the Following Parameters:
- Speedo - With trip meter & ODO
- Tacho - With LED Shift Lights
- MIL (Malfunction Indication Lamp or Engine Light) - A Requirement for Engineering
- Voltage - With Programmed Warnings
- Oil Pressure - With Warnings & Alarms Using factory sender
- Water Temp - With Warnings & Alarms
- Fuel Level - With Warnings
- Inputs for Indicators & High Beam
AND TWO OF THE FOLLOWING OPTIONS
- Oil Temperature (Sensor and Adapter Fitting Included)
- Transmission Temperature (Auto Trans only, Requires fitment of included 1/8NPT Sensor)
- Fuel Pressure (1/8 NPT Sensor Included)
- Manifold/Boost Pressure (Sensor Included)
- Fuel Level 2 (Using in tank Sender - For 4wd's with 2 Tanks)
- Shifter Position (Auto Trans Only - Uses Linear Position Sensor)
FOR SENSOR COMBINATIONS NOT SELECTABLE BELOW (IE - Trans Temp & Boost) PLEASE EMAIL US
We are an official Haltech dealer and are extremely happy to be bringing this innovative kit to the market! The first of it's kind available.
PLEASE NOTE - GPS Speed is NOT LEGAL in many states across Australia - Please only select this option if absolutely necessary.
Please see website header or email us for current turn around time as these kits are CUSTOM and MADE TO ORDER.
Please email or call us with any special requests in regards to programming or sensors.
