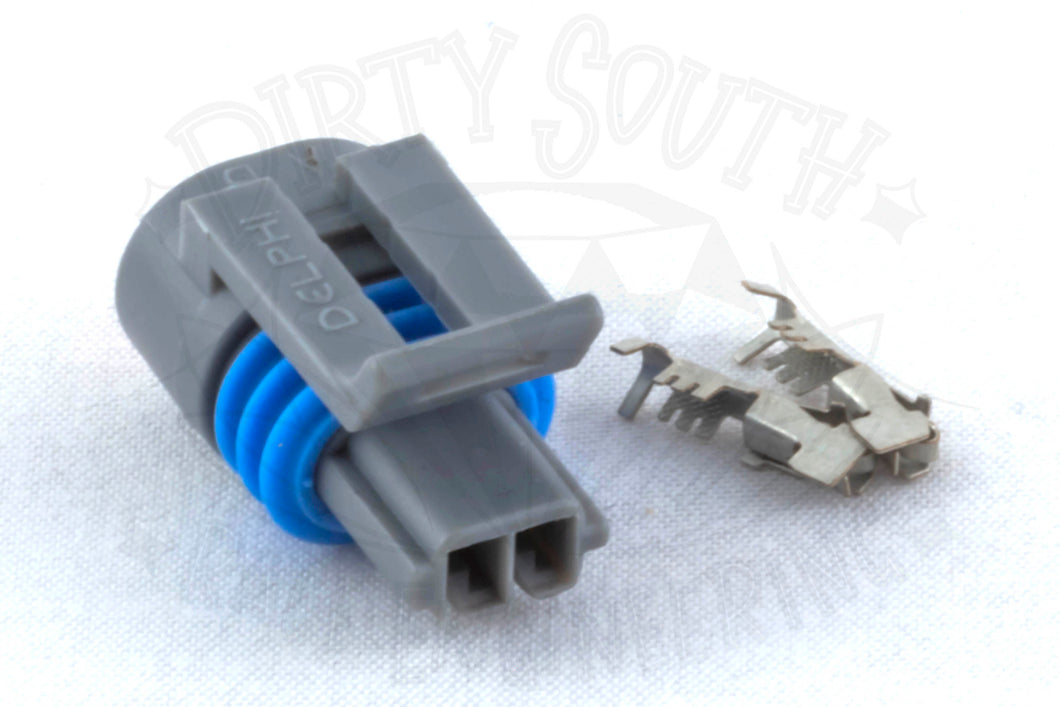

GENUINE Aptiv (Delphi) 2 Pin Connector
THESE CONNECORS ARE PULL TO SEAT - THIS MEANS THE WIRES PASS THROUGH THE CONNECTOR BEFORE BEING CRIMPED TO THE TERMINALS
This connector is used in the following applications;
- LS1 (VT-VY) Intake Air Temp Sensor
**NOTE**
Can also be connected to VZ and Later models where the IAT sensor is integrated into the MAF with a MAFLESS/Speed Density Tune
Supplied in two Options:
Connector Kit which includes:
- 1x Connector Body
- 2x Terminals (+1 Spare)
This kit Requires you to crimp the terminals yourself (instructions included)
INSTRUCTIONS HERE
Patch Harness which Includes:
- 1x Terminated (Pre crimped) complete connector
- Pigtail of wiring to allow connection into the harness
- 2x Splice crimps to join into harness
INSTRUCTIONS HERE
ALTERNATIVES:
An alternative option to the Pull to seat connector is available HERE - fits all the applications listed above.
Please check the photos carefully to ensure you are ordering the right connector, many connectors look the same but have slightly different keyways!
